Dartmoor Hubs REEL Expert

Dhs. 433.00

REEL EXPERT REAR WEIGHT 298G SIZES 148X12MM ENGAGEMENT POINTS 108 DESCRIPTION The ultra-light Reel Expert series rear hubs are the upgraded Reel Pro v.2 hubs that were available before. The Reel Expert hubs are equipped with a new wide pawls system with 108 engagement points and a reinforced structure to meet...

Style

Boost rear Shimano HG 32H Black

Boost rear Shimano HG 32H Petrol

Boost rear Microspline 32H Black

Boost rear Microspline 32H Petrol

Boost rear Sram XD 32H Black

Boost rear Sram XD 32H Petrol

Boost reel expert front 100x15mm 32H Petrol

Boost reel front 110x15mm 32H Black

Categories : BIKE PARTS & ACCESSORIES, COMPONENTS, DARTMOOR, DARTMOOR HUBS, HEADSETS

Description
Additional Information

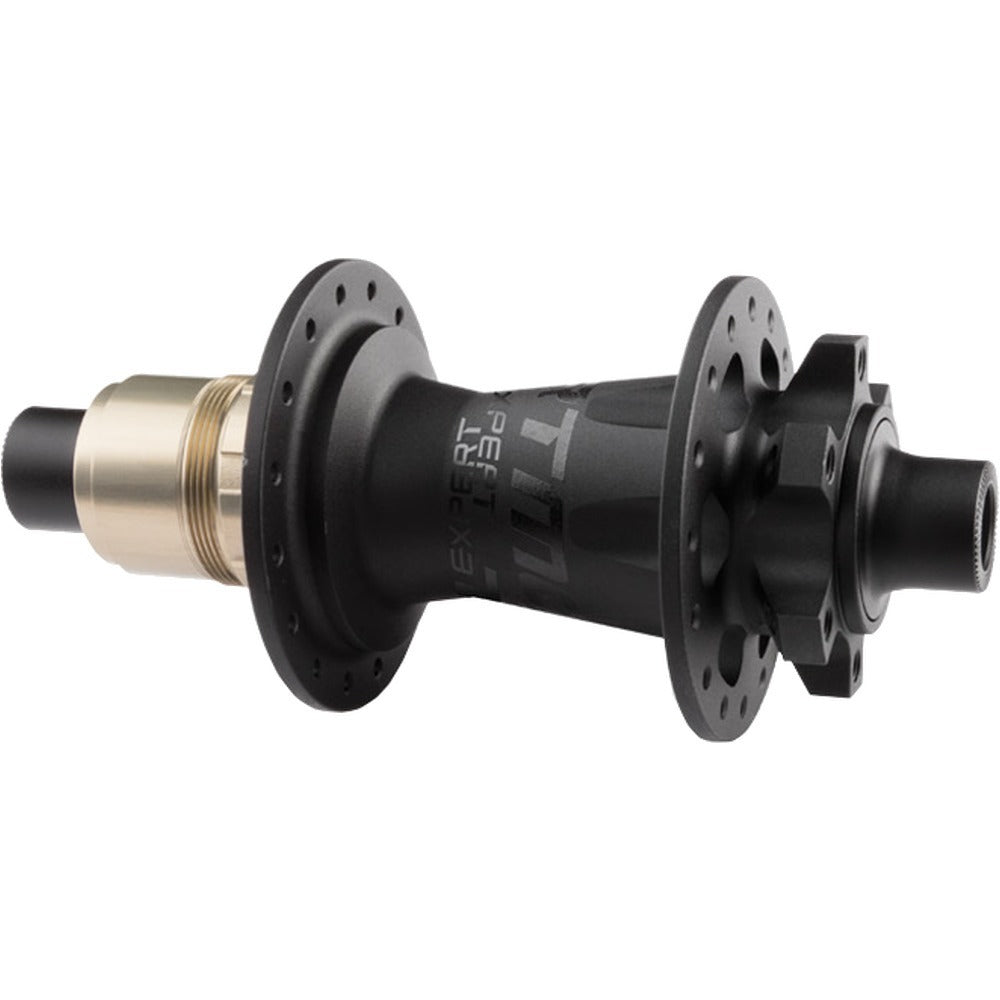

REEL EXPERT REAR

WEIGHT

298G

SIZES

148X12MM

ENGAGEMENT POINTS

108

DESCRIPTION

The ultra-light Reel Expert series rear hubs are the upgraded Reel Pro v.2 hubs that were available before. The Reel Expert hubs are equipped with a new wide pawls system with 108 engagement points and a reinforced structure to meet the requirements of modern drivetrains with cassettes generating very high loads when uphilling on a 51T or 52T cog. Each pawl has 2 teeth, catching the ratchet ring at the same time to increase the reliability of the pawls system. This super-strong system has already been used by us in the 2021 Dartmoor product range on Raven and Thunder straight-pull wheels.

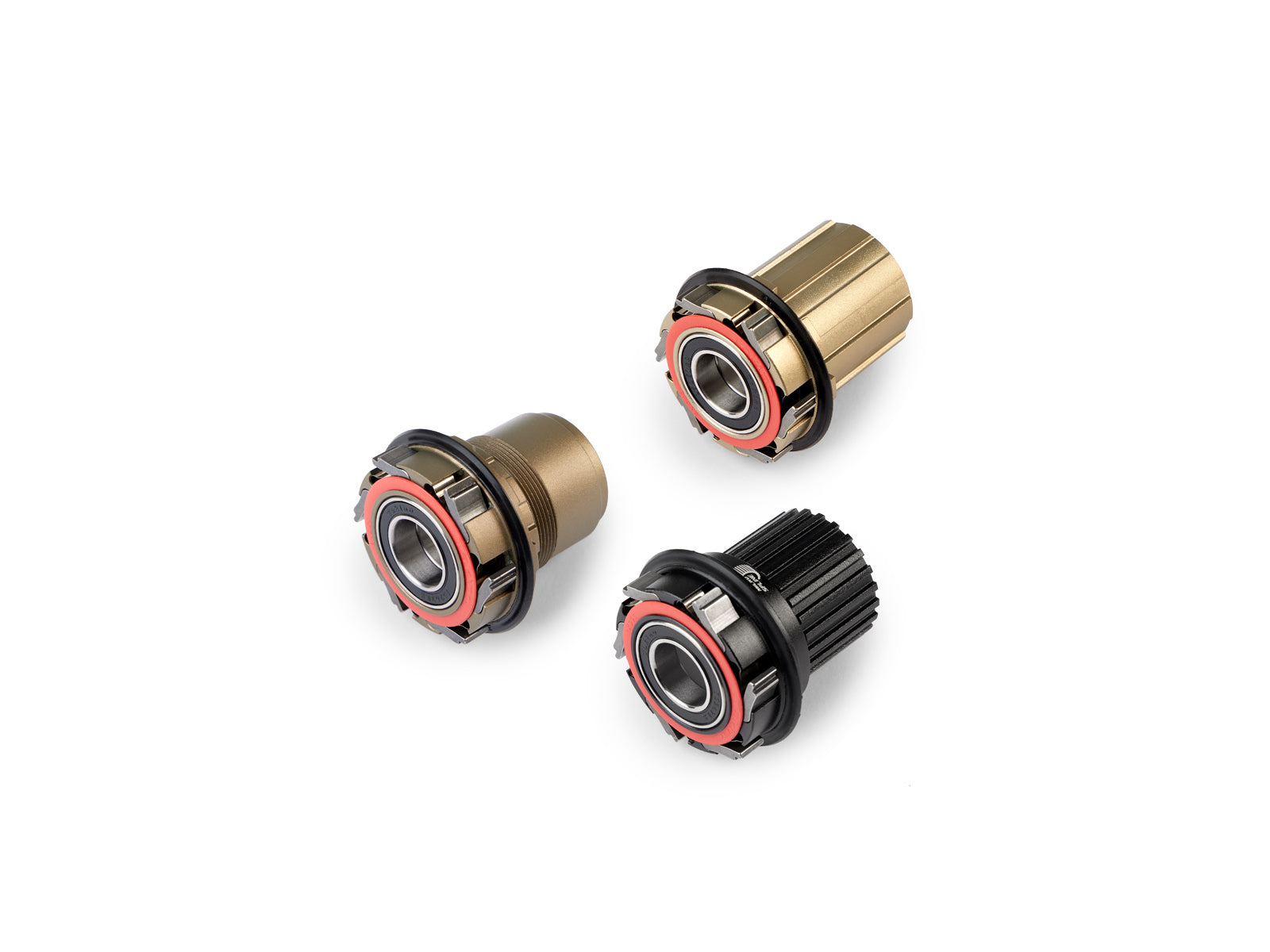

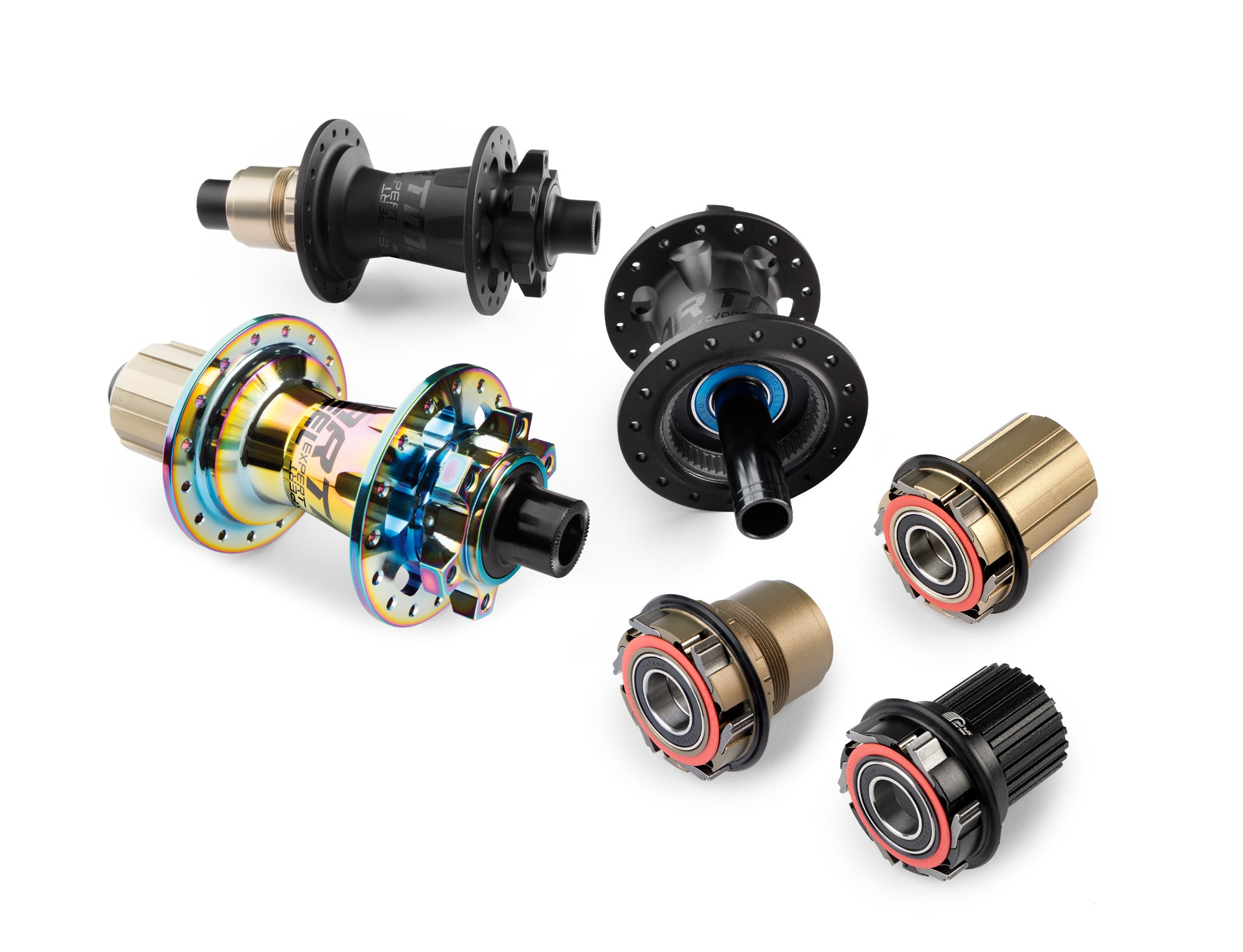

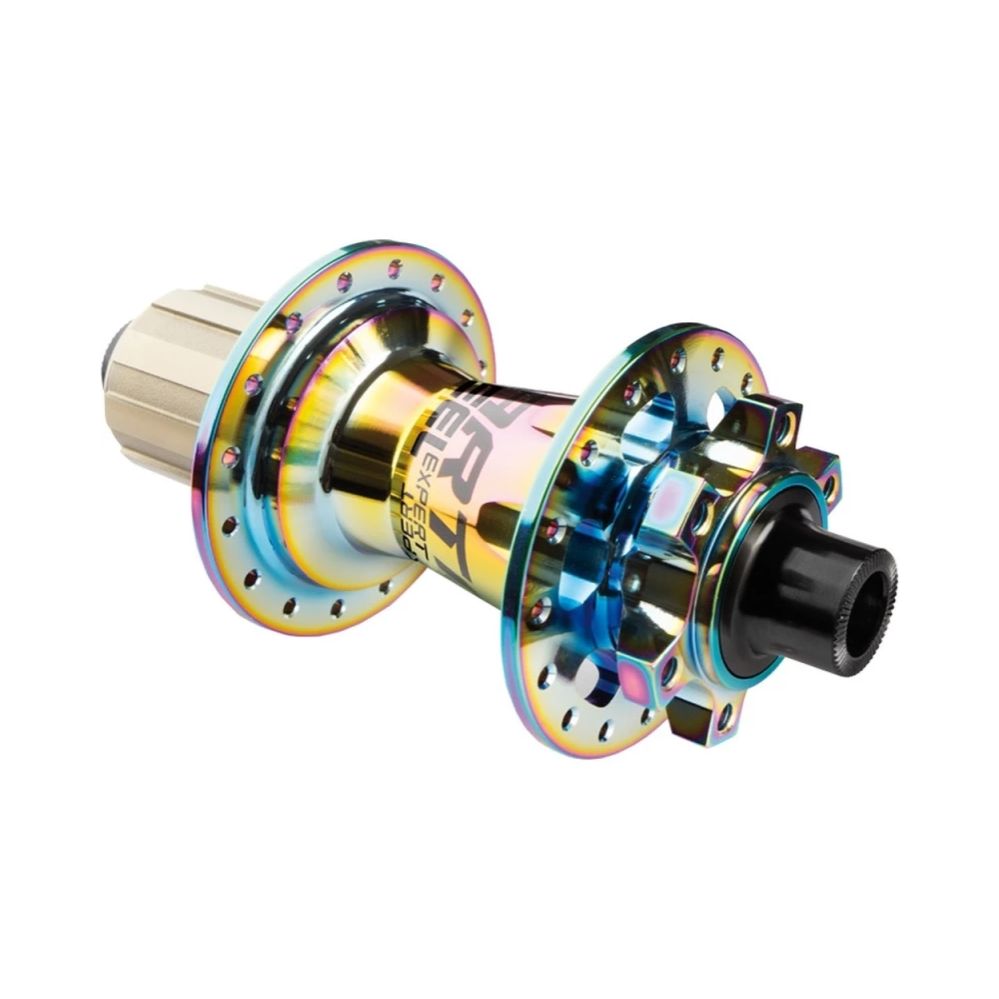

There are four versions of Reel Expert rear hubs, three are equipped with aluminum 7075 internal axle and freehubs compatible with Shimano HG (a common type of freehub), Shimano Microspline, or SRAM XD standards. The fourth version is dedicated to e-bikes and is equipped with a Cr-Mo steel internal axle and a Cr-Mo steel Shimano HG freehub to withstand the loads generated by the drivetrains of gravity e-bikes. The Reel Expert rear hubs are equipped with highest quality sealed bearings with LLU full-contact seals branded with the Dartmoor logo and custom selected Mobil waterproof grease for the best mud and dust protection. There are 5 sealed bearings in the hubs with Shimano HG and SRAM XD freehubs and 6 sealed bearings in the hubs with Shimano Microspline freehub.

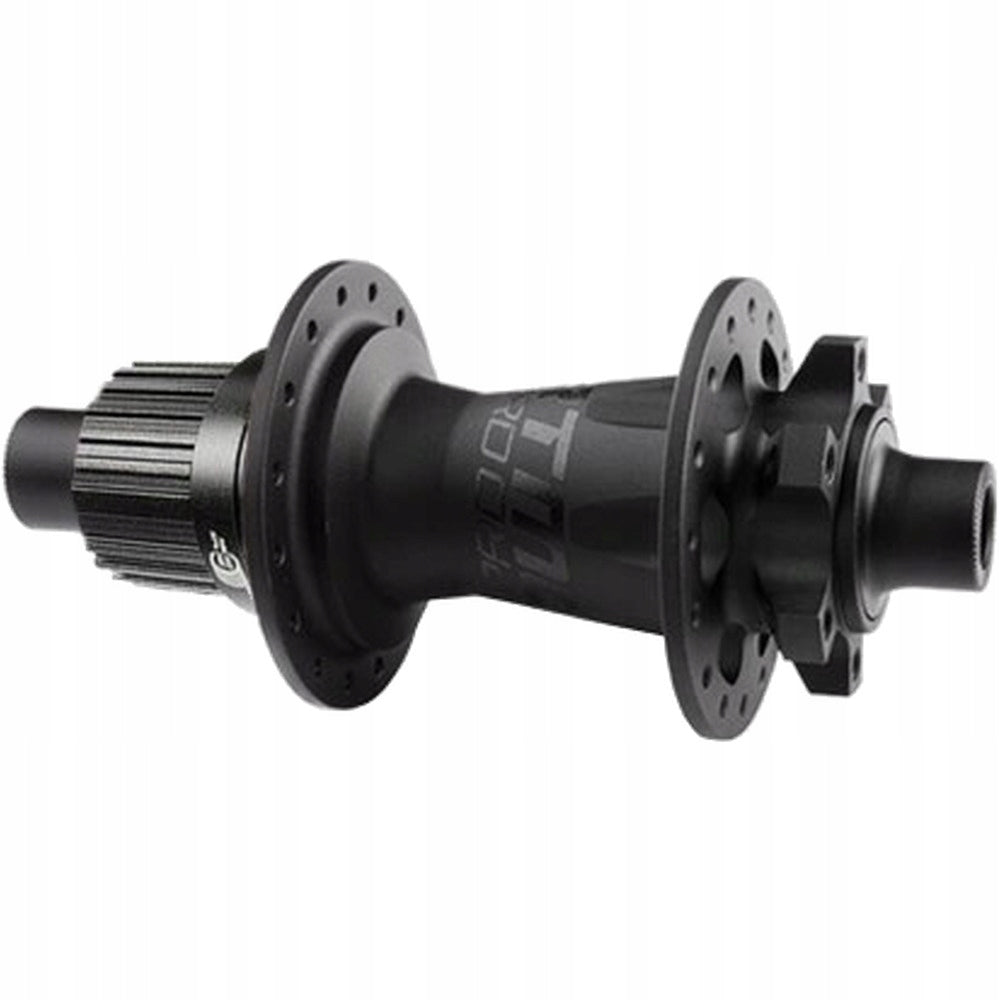

Compatibility between Reel Expert and Reel Pro v.2 series:
Freehubs, pawls, and springs – not compatible
Internal axles and cones – compatible
