ELVES FALATH EVO DISC UCI APPROVED

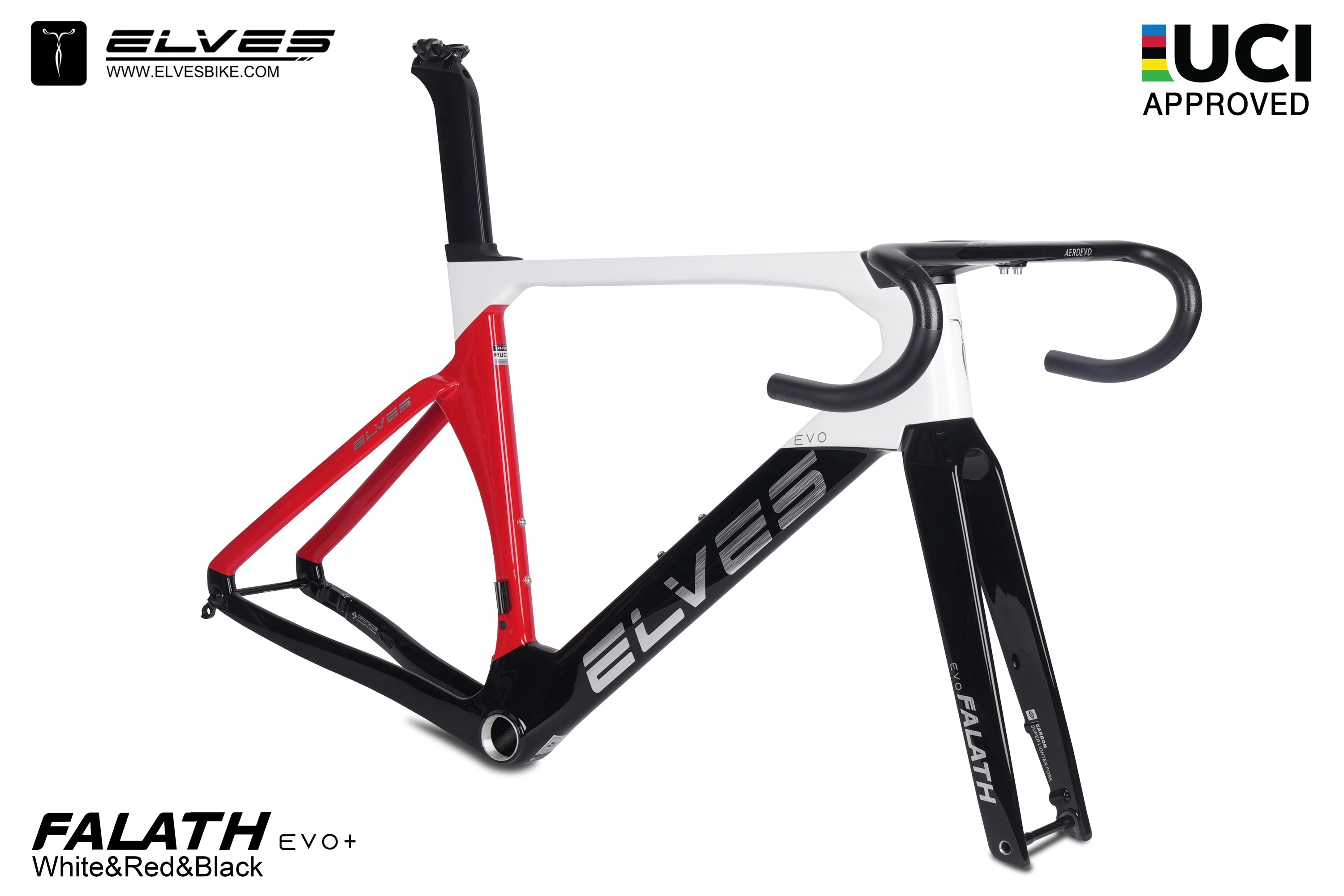

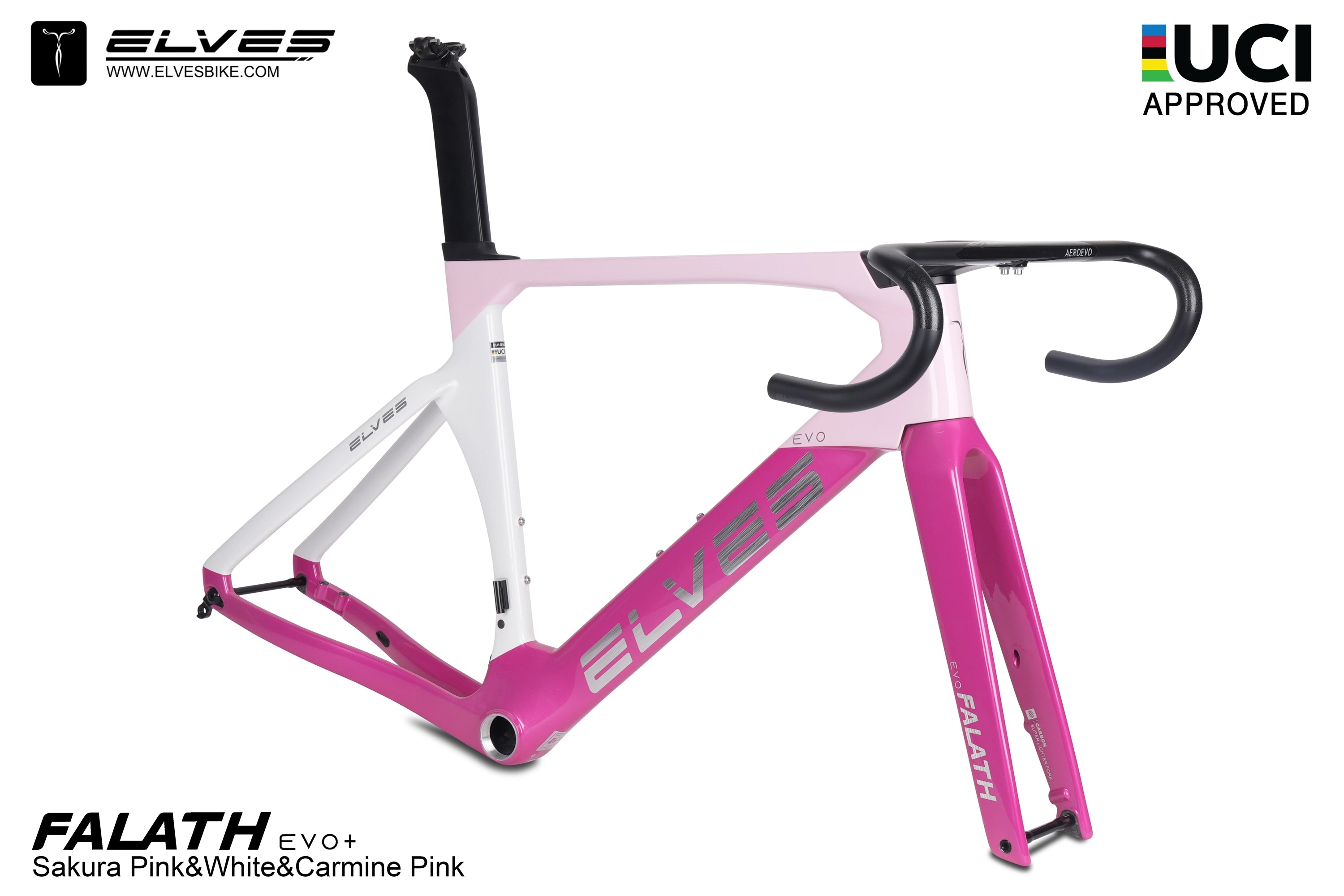

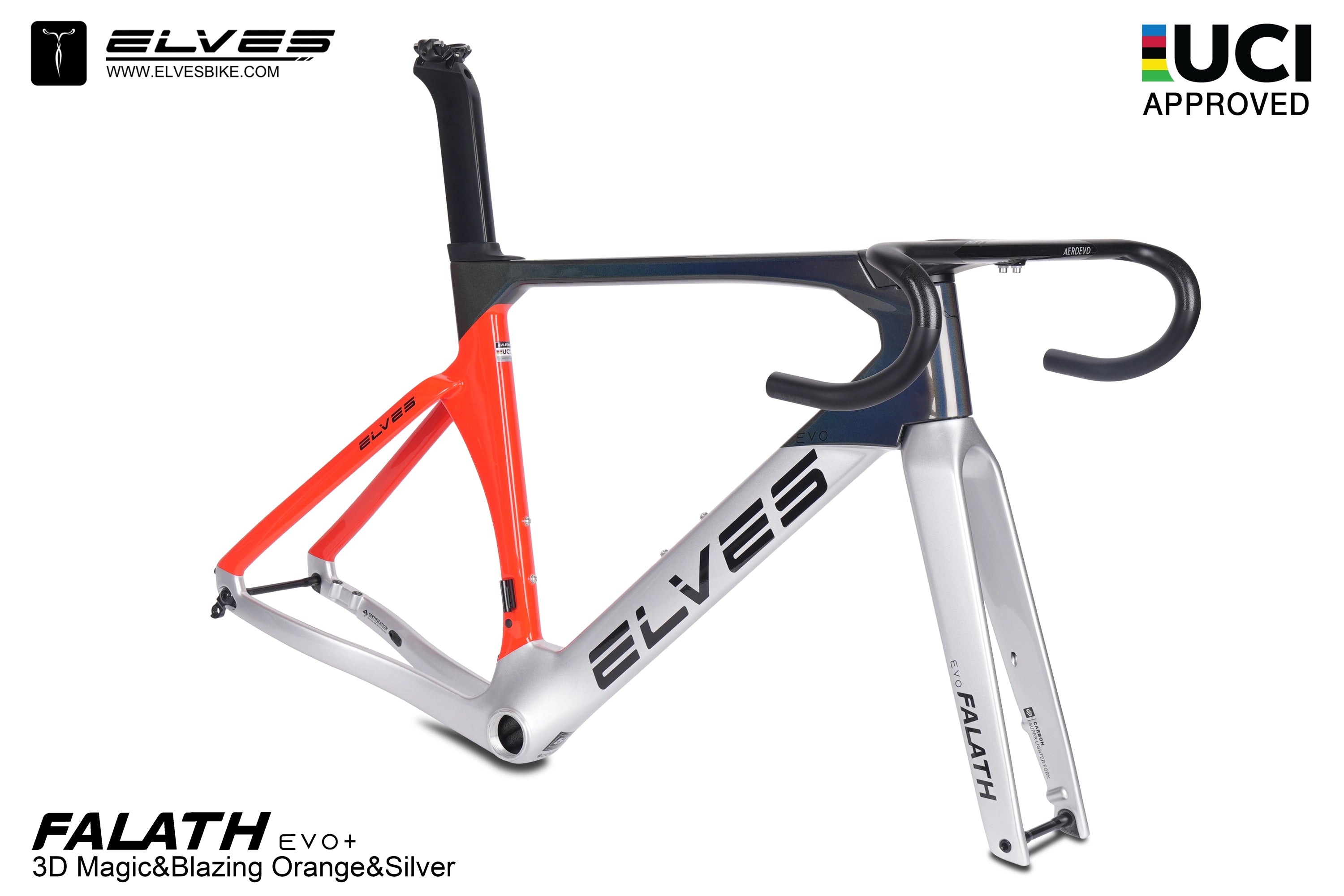

The Falath Evolution (Falath EVO) Is A UCI-Compliant Aerodynamic Road Bike Frame. The EVO Has Evolved from The Previous Falath Pro and Builds Upon Its Current Outstanding Performance in Terms of Aerodynamics. Extensively Revised, When Compared to Its Predecessor, The Falath EVO Has a Thinner and Taller Downtube Along with A More Aerodynamic Design at The Seat-Stay, A Noticeable Handlebar Drop Has Also Produced a Lower and More Aerodynamic Riding Position. Our Team of Dedicated Engineers Are Committed to The Evolution of The Falath Family Through the Technical Innovation of This Bold and Exciting Design. Elves Bikes . . . Why Compromise?

The Falath EVO Frame UCI Code: ELV-FEVO. What Does the UCI Accreditation Mean? Put Simply, It Means That the Falath Evo Frame Meets All of The Necessary Technical Rules to Fully Comply with The UCI Requirements. The Frame Can Now Be Listed on The UCI’S Database of Approved Frames, And Qualifies to Be Raced in Events Overseen by the UCI.

The Falath EVO Frame Uses Unidirectional High Modulus Carbon Fibers from The Japanese Technology Leader Toray. These Have 65%-85% More Tensile Strength Than Conventional Carbon Fibers. Although The Falath EVO Frame’s Downtube and Forks Has a Much Taller and Thinner Profile, The Weight of This Innovative Frame Is Approximately 80g Lighter Than the Previous Falath Pro Model. Thanks To A Carefully Engineered Toray® Carbon Lay-Up Schedule Using More T1000 Carbon Fiber in Important Areas Such as The Head Tube and Bottom Bracket, The Result Is Increased Stiffness and Reduced Weight. Our EPS Molding Technology Leaves the Frames’ Internal Surfaces as Smooth and Seamless as The Exterior, With Increasing Strength Due to The Uniformity of The Fibers, Molding the Frame to Its Exact Requirements with Consistently Smooth and Uniformed Tube Thickness. The Result Is a Lighter, Stiffer and More Consistent Product. Elves Use 3K Carbon Fiber Instead of Unidirectional Fiber To Mold The Headtube Bearing And BB Internal Surface For A Cleaner And More Precise Design...

Another Great Advantage of The Falath EVO Over Its Predecessor, Is the Ability to Fit Tyres Up To 32C. Expand Your Idea of Road Riding and Unlock New Possibilities! Upgrading To 32C Tyres Allows You to Run Lower Pressures, So That You Can Ride Longer with More Comfort, Whilst Delivering Better Straight Line and Cornering Stability.

The Falath EVO, Combined with New Elves OROME AeroEvo Handlebars, Allows You to Thread the Cables Internally Through the Bars and Headset Directly into The Frame. Elves Have Designed the OROME AeroEvo Handlebars to Be More Aerodynamic, Whilst Blending Perfectly with The New EVO Frame. Available In Four Widths and Six Lengths, The Set-Up Comes with And Extra 3x10mm Spacers So That You Can Set the Position of Your Bars to Your Exact Requirements.

Unquestionably, Your Safety Is the Main Priority of The Elves Team, Allowing Our Brand to Meet and Exceed That of Our Competitors. Along With All Our High-Quality Products, The Falath EVO Frame Comes with Our 5-Year Global Warranty. All Evo Frames Meet the ISO 4210-6:2023 Standard and EN 14766 Safety Requirements, Elves Has Always Been Synonymous with Fabulous Frame Finishes, And the Elves Falath EVO Frame Is Certainly No Exception. We Are Proud That the Elves Brand Is Now Globally Recognized and Loved by Customers Worldwide. The Evo Frame Comes in Seven Standard Color Choices Plus the Option of Our Infamous Custom Paint Service, Giving You Total Freedom to Have Your Bike Your Way. Elves Bikes . . . Why Compromise?

The Falath EVO an Extremely Stiff and High-Quality UCI-Compliant Aerodynamic Road Bike Frame That Will Provide You with A Superior Riding Experience on Your Long Days Out.

FRAME

FULL-CARBON (TORAY T800 & T1000 CARBON FIBER)

GEOMETRY: PRO

SEAT CLAMP: INTEGRATED

WEIGHT: 1050G (SIZE 46, UNPAINTED)

HEADSET BEARING: 1-1/2"X8mm LOWER,1-1/2" X7mm UPPER

BRAKE: FLAT MOUNT

BOTTOM BRACKET: T47 Threaded BB

ELECTRIC DRIVETRAIN: Di2 & E-TAP COMPATIBLE

EPS MOLDING TECHNOLOGY

FULL INTEGRATED CABLE ROUTING

THRU AXLE DIMENSION: M12X1.5X163 mm

MAX TYRE SIZE: 700CX32C

MAX ROTOR SIZE: UP TO 160MM
